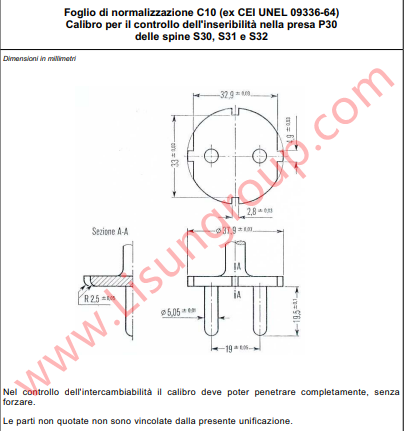

CEI-23-50 Foglio di normalizzazione C10 (ex CEI UNEL 09336-64) Calibro per il controllo dell’inseribilita nella presa P30 delle spine S30, S31 e S32

CEI 23-50 Sheet C10 Gauge for Checking Insertability of Specified Plugs into Corresponding Sockets is manufactured in accordance with CEI 23-50 Normalization Sheet C10 and is dedicated to verifying the insertability of S30, S31 and S32 plugs into P30 sockets. As a professional testing tool for electrical connection components, it plays a vital role in ensuring the proper matching between the specified plug types and P30 sockets, which is essential for maintaining the stability of electrical connections and avoiding potential safety hazards caused by poor insertability. It is widely used by manufacturers, testing institutions and regulatory bodies engaged in the production and quality control of household and similar electrical plugs and sockets.

Specifications
• Complies with CEI 23-50 Normalization Sheet C10 standard
• Is specially designed for verifying the insertability of S30, S31 and S32 plugs into P30 sockets
• Adopts high-precision structural design to ensure the accuracy and reliability of insertability testing
• Features stable physical properties to withstand repeated testing operations without structural deformation
• Meets the general technical requirements for plugs and sockets testing gauges in relevant electrical industry standards

Test Procedures
• Prepare the gauge, to-be-tested S30/S31/S32 plugs and P30 sockets, and ensure all testing items are clean, free of deformation, rust or other defects that may affect the test results.
• Fix the P30 socket in a stable position to avoid displacement during the testing process.
• Take the corresponding plug, align it with the P30 socket according to the normal use orientation, and try to insert the plug into the socket with the assistance of the gauge to simulate the actual insertion process.
• Observe and record whether the plug can be smoothly inserted into the P30 socket within the specified range of force, and judge whether the insertability of the plug meets the standard requirements based on the test performance.
• Repeat the above steps for each type of plug (S30, S31, S32) to complete the full range of insertability tests.
• After the test is finished, clean the gauge and testing samples, and store the gauge in a dry and ventilated environment to extend its service life.

Applications
• Production line quality inspection of plug and socket manufacturers, where the gauge is used to conduct batch sampling tests on S30/S31/S32 plugs and P30 sockets to ensure the insertability of finished products meets standards.
• Compliance certification testing of electrical plug and socket products by third-party testing institutions, using the gauge to verify whether the matching performance of the specified plugs and sockets conforms to relevant Italian standards.
• R&D and design phase of plug and socket products, where the gauge is applied to verify the rationality of the structural design of P30 sockets and S30/S31/S32 plugs, and optimize the product structure according to the test results.
• Market supervision and spot-check work of regulatory departments, using the gauge to inspect the insertability of plugs and sockets on the market and eliminate unqualified products with poor matching performance.

CEI-23-50 Foglio di normalizzazione C10 (ex CEI UNEL 09336-64) Calibro per il controllo dell’inseribilita nella presa P30 delle spine S30, S31 e S32.
