CEI 23-50 C1 Calibri per il controllo della distanza tra la superficie frontale e il primo punto di contatto con gli alveoli attivi delle prese bipolari da 10 A – 250 V e da 16 A – 250 V

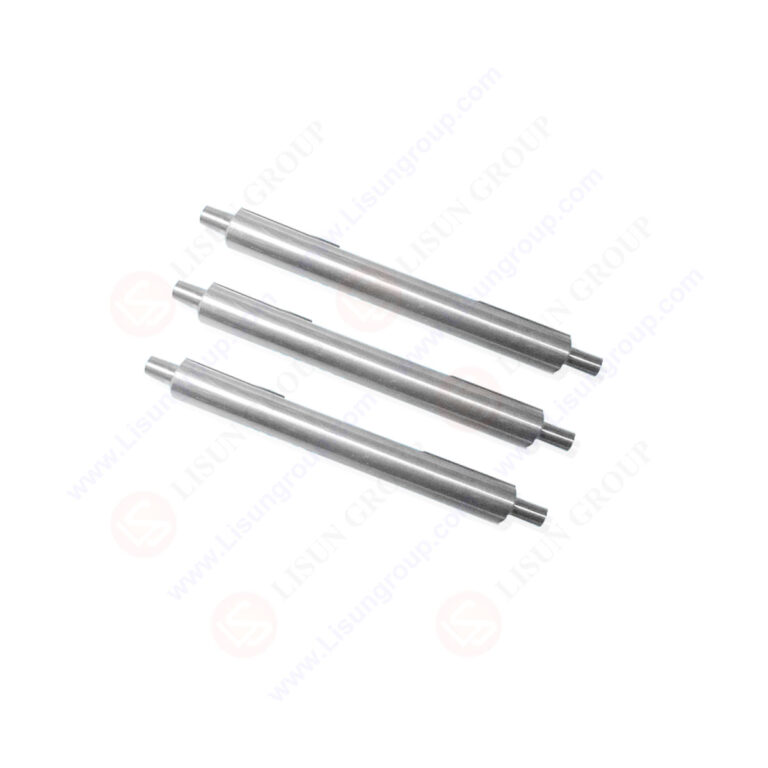

CEI 23-50 C1 Calibri per il controllo della distanza tra la superficie frontale e il primo punto di contatto con gli alveoli attivi delle prese bipolari da 10 A – 250 V e da 16 A – 250 V is dedicated to testing the distance between the front surface and the first point of contact with the live contact tubes of 10A 250V and 16A 250V two-pole socket-outlets, fully complying with the CEI 23-50 standard. It features specialized short and long pins designed for precise inspection, ensuring that the tested socket-outlets meet the required dimensional and structural specifications for safe and reliable use in relevant applications.

Specifications:
• Complies with the CEI 23-50 technical standard
• Applicable to: 10A 250V and 16A 250V two-pole socket-outlets
• Structural design: Equipped with short pins and long pins for dual inspection
• Key dimensions (with tolerances): 4.2 mm (+0.02 / 0), 5.5 mm, 9.95 mm (+0.05 / 0), 13.5 mm (+0.05 / 0)
• Diameter specification: Φ120.5
• Edge feature: Sharp edges (Spigolo vivo)
• Function: Verifies the distance between the front surface and the first contact point with live contact tubes

Test Procedures:
• Prepare the 10A 250V or 16A 250V two-pole socket-outlet to be inspected, ensuring its front surface is clean and free of obstructions.
• Insert the short pin of the gauge into the live contact tube holes of the socket-outlet smoothly.
• Check that the short pin does not touch the live contact tubes of the socket-outlet.
• Remove the short pin and insert the long pin of the gauge into the same live contact tube holes completely.
• Confirm that the long pin makes firm contact with the live contact tubes of the socket-outlet.
• Determine compliance: If the short pin fails to touch the live contact tubes and the long pin successfully contacts them, the socket-outlet meets the standard requirements.

Applications:
• Dimensional inspection of the distance between the front surface and the first contact point for 10A 250V two-pole socket-outlets.
• Compliance verification of the contact distance specification for 16A 250V two-pole socket-outlets.
• Quality control during the production process of two-pole socket-outlets in the electrical appliance industry.
• Conformity assessment in the electronics manufacturing sector for socket-outlet components.
• Safety and specification inspection of two-pole socket-outlets for domestic and similar purposes.
