Product No: LFCI61000-19

  • Specifications

  • The LFCI61000-19 Low-Frequency Differential-Mode Conducted Immunity Test System incorporates a signal source, power amplifier, and single-phase coupling/decoupling network. It is used to apply differential-mode conducted interference within the DC~180kHz frequency range to AC power ports, evaluating the immunity performance of electrical and electronic equipment to low-frequency differential-mode interference. It simulates on-site electromagnetic environments such as power grid switching disturbances, carrier communication, and differential-mode voltage and current disturbances at power ports caused by the operation of power electronic equipment. It is widely used for EMC type testing of products such as electricity meters, industrial control equipment, relays, power electronic devices, and instruments, as well as in third-party testing laboratories and enterprise R&D and quality control departments.

    Standards:

    Standards No Standards Name
    IEC 61000‑4‑19:2014 Electromagnetic compatibility (EMC) – Part 4‑19: Testing and measurement techniques‑Test for immunity to conducted, differential‑mode disturbances and signalling in the frequency range 2 kHz to 150 kHz at a.c. power ports
    GB/T 17626.19‑2022 电磁兼容 试验和测量技术 第 19 部分：交流电源端口 2 kHz～150 kHz 差模传导骚扰和通信信号抗扰度试验

    Specifications:

    Differential Mode Voltage Test Parameters according to IEC 61000‑4‑19 table 1
    Frequency Range 2kHz~180kHz
    Open Circuit Voltage 0.1V ~ 30V ±5%
    Harmonic Distortion ＜5%(sine wave)
    Pulse Modulation 3Hz~1kHz
    Output Impedance 10 Ω±30%
    Differential Mode Current Test Parameters according to IEC 61000‑4‑19 table 2
    Frequency Range 2 kHz~180 kHz
    Current 6 A
    Load Output Impedance 1Ω±0.3 Ω
    Overall Parameters
    Pulse Modulation Duty Cycle 0.5
    DUT Voltage and Current Built-in coupling/decoupling network: Single phase 240V/16A
    Control System 10.1-inch Chinese/English Android capacitive touchscreen display + supports remote control via PC software
    Output Interface LAN、USB、RS485
    Usage Environment Temperature ：10~40℃ ,  Humidity ：30%~70%
    Working Power Supply AC：110~250V/10A   50Hz/60Hz

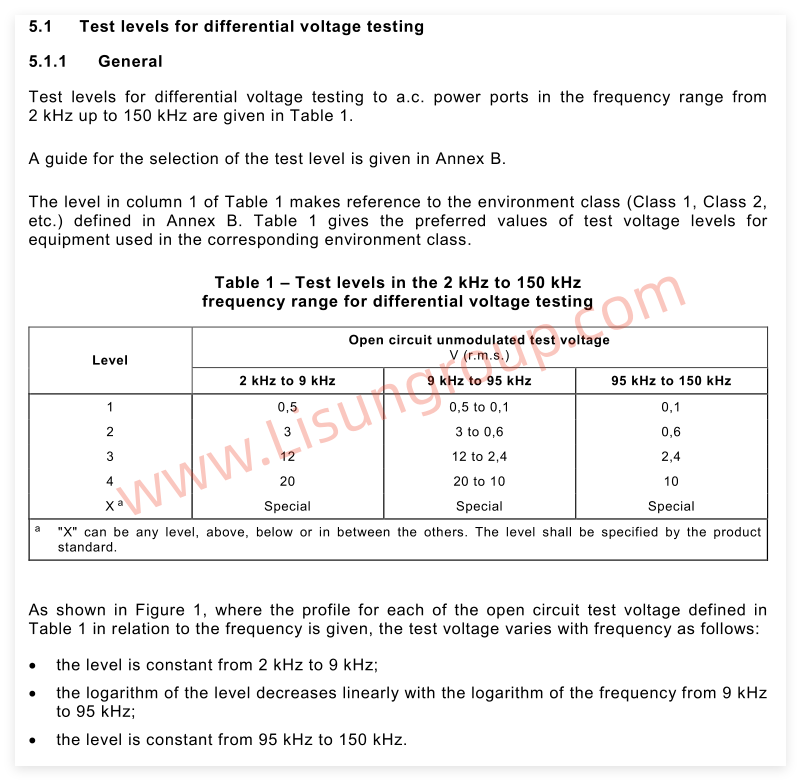

    IEC 61000‑4‑19:2014 Table 1

    IEC 61000‑4‑19:2014 Table 1

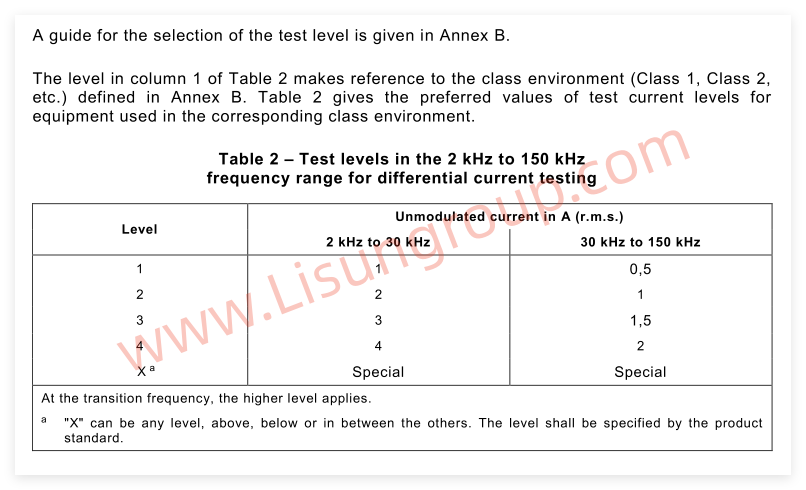

    IEC 61000‑4‑19:2014 Table 2

    IEC 61000‑4‑19:2014 Table 2
