Product No: LS-B72
The UL1598 Surface Ceiling Temperature Test Apparatus is designed and manufactured according to UL 1598 Clause 19.10 and Figure 19.10.1, and UL1993 Clause 9.5.2 and Figure 9.2 . The test apparatus comes with movable brackets and casters, making it movable and easy to change its placement, which is very convenient for daily testing and equipment management in the laboratory.
Specifications:
| Item Name | Specifications |
| Octagonal Outlet Box | Westing House 1050 (USA), Specifications: 4 x 1-1/2 inch |
| Ceiling branch wire temperature detector | Optional equipment 1 piece |
| External dimensions | Length: 1400mm*Width: 1220mm*Height: 2050mm |
| Front and back plates | 1218mm*1218mm，12mm Thickness |
| Timber on both sides | 2×6 inches |
| Timber at both ends | 1×6 inches |
| Intermediate support timber | 2×4 inches |
| Neutral wire Live wire | Black and white 14AWG 1015 |
| Ground wire | Green 15AWG 1015 |
| Ceiling height from the ground | 1.85m |
| Fiberglass | Double-layer vertical 89mm, with factory certificate, no calibration certificate. |

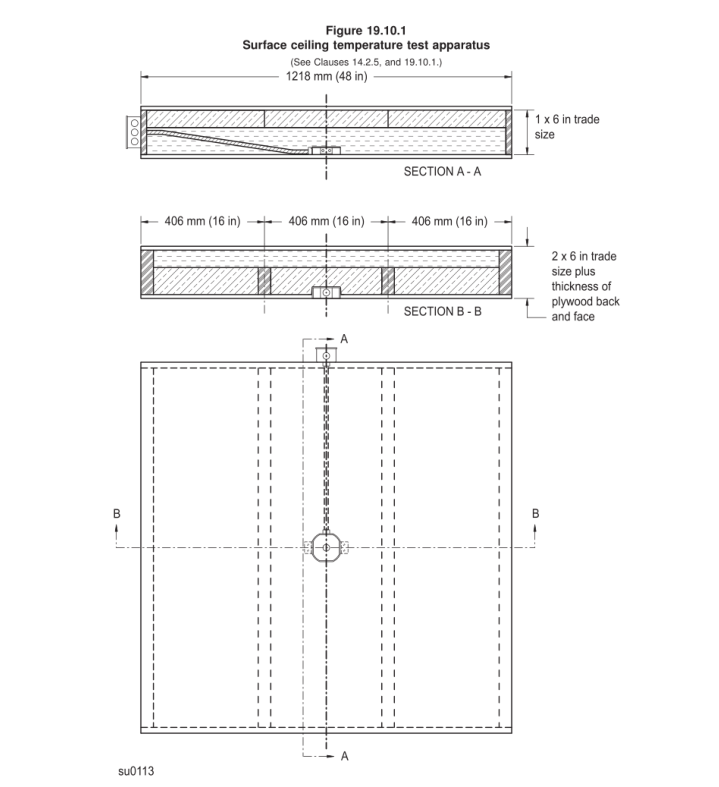

UL 1598 Figure19.10.1
