Product No: LSTMR-103

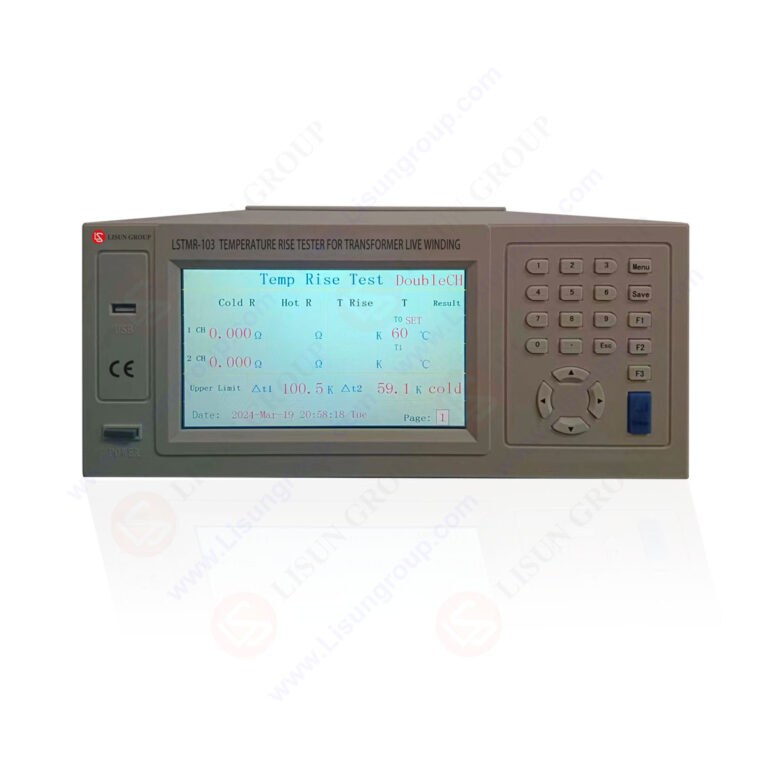

The LSTMR-103 live winding temperature rise tester is a specialized instrument focused on measuring winding temperature rise, used to assess the core performance of small-power motors and electronic transformers. The instrument accurately measures the cold and hot resistance of the windings, calculating the temperature rise data. It supports simultaneous live testing of single or two windings to meet various testing needs. Equipped with a color LCD display, the data is presented clearly and intuitively. It features automatic range switching to ensure measurement stability and repeatability. Furthermore, it supports multiple communication interfaces and USB flash drive storage, facilitating convenient data reading, saving, and traceability, providing reliable testing support for product development, quality control, and life testing.
Standards:
| Standards No. | Standards Name |
| IEC 60034-1:2017 | Rotating electrical machines – Part 1: Rating and performance |
| IEC 61558-1:2017 | Power transformers, power supply units and similar products for use in electronic equipment – Part 1: General requirements and tests |
| IEC 61558-2-6:2017 | Power transformers, power supply units and similar products for use in electronic equipment – Part 2-6: Particular requirements for switching power supplies |
| GB/T 12350-2019 | 小功率电动机 通用技术条件 |
| GB/T 1094.2-2013 | 电力变压器 第 2 部分：温升 |
| GB/T 19212.1-2022 | 电力变压器、电源装置和类似产品的安全 第 1 部分：通用要求和试验 |
| GB/T 19212.16-2022 | 电力变压器、电源装置和类似产品的安全 第 16 部分：开关电源的特殊要求 |
Specification:
• The color LCD screen can display the cold resistance, hot resistance, temperature rise, and temperature rise test time of two groups of windings. You can select one group of windings or two groups of windings to detect the temperature rise at the same time.
• Automatic range switching, wide linear range, good reading repeatability, stable performance.
• Equipped with RS232/485 interface, connected to the computer, read and save the measurement data, so as to facilitate the tracking of original data and quality statistical analysis.
• You can set the U disk storage time, store data in the U disk at a fixed time.
| Slimination of Cooling and Heat Resistance | 0.500~10000Ω | ||
| Cooling Resistance Measurement Accuracy | 0.500~99.99Ω | 99.99~2000Ω | 2000~10000Ω |
| 0.2%± 5 characters | 0.2%± 2 characters | 0.2%± 1 characters | |
| Power Supply | AC 220V±10%，50HZ±2% | ||
| Working Environmental | Working temperature：0℃~40℃，Humidity：30%~90% | ||
| Dimensions(mm) | 330（W）*400（D）*150（H） | ||
| Weight | 9KGS | ||
Typical applications:
• Temperature rise measurement of motor windings for air conditioners
• Temperature rise performance testing of refrigerator compressor windings
• Temperature rise testing of motors for freezers and electric fans
• Temperature rise assessment of motor windings for range hoods
• Temperature rise performance verification of water pump motor windings
• Temperature rise measurement of windings for 50/60Hz power transformers
• Temperature rise test of AC/DC converters (ADAPT)
• Temperature rise performance testing of AC/AC and AC/DC converters
• Temperature rise testing during the R&D phase of electronic transformers such as chargers
• Temperature rise compliance verification in the quality control process of electronic transformers
• Temperature rise life test of small power motors and electronic transformers
