Product No: LS-RCT-500MA

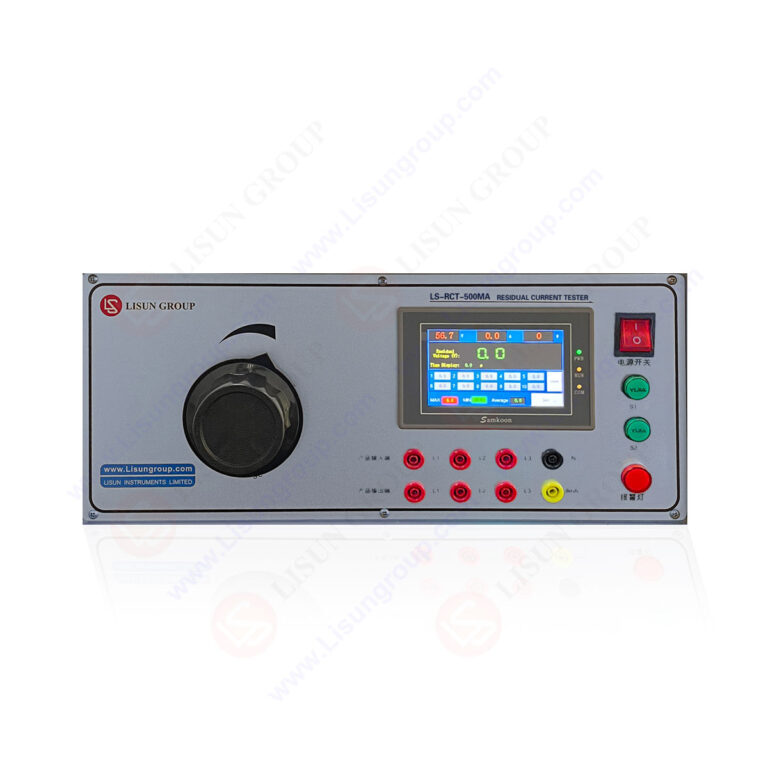

The LS-RCT-500MA residual current device (RCD) operating characteristic tester is used to test the operating characteristics of various residual current protection devices and circuit breakers, verifying whether their response performance under specified residual current conditions meets safety requirements. This equipment outputs stable current and voltage signals, and through precise control of test parameters, simulates residual current scenarios under different operating conditions to test the operating characteristics of protection devices of different specifications and types. During the test, it accurately records key data such as operating time, supports multiple phase and polarity selections, meets the testing needs of different types of protection devices, provides a reliable basis for product quality verification and safety performance evaluation, and ensures that electrical systems can promptly cut off power in the event of a fault, avoiding the risk of electric shock.
Standards:
| Standards No. | Standards Name |
| IEC 60755:2022 | Residual current operated protective devices (RCDs) |
| IEC 61009-1:2012 | Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs) – Part 1: General rules |
| IEC 60947-1:2020 | Low-voltage switchgear and controlgear – Part 1: General rules |
| IEC 60947-2:2024 | Low-voltage switchgear and controlgear – Part 2: Circuit-breakers |
| IEC 60898-1:2015 | Circuit-breakers for overcurrent protection for household and similar installations – Part 1: General rules |
| GB/T 6829-2024 | 剩余电流动作保护电器 |
| GB/T 16917.1-2014 | 家用和类似用途的带过电流保护的剩余电流动作断路器 (RCBO) 第 1 部分：通用规则 |
| GB 14048.1-2023 | 低压开关设备和控制设备 第 1 部分：通用规则 |
| GB 14048.2-2020 | 低压开关设备和控制设备 第 2 部分：断路器 |
| GB 10963.1-2020 | 家用及类似场所用过电流保护断路器 第 1 部分：通用规则 |
Specification:
| Working Power Supply | AC220~240V, 50/60Hz |
| Electrical Control Method | Integrated control, touch screen for operation |
| Current Output Range | AC: 0~500 mA |
| Voltage Output | Three-phase 0~420 V |
| Current and Voltage Display Accuracy | Class 1; Current resolution 0.1 mA; Voltage resolution 0.1 V |
| Timing Accuracy | 5 ms, resolution 1 ms |
| Phase Selection A | 0 degrees (500 mA), 90 degrees (500 mA), 135 degrees (300 mA) |
| Polarity Selection A | Positive, negative, positive + DC 6 mA, negative + DC 6 mA |
| Dimensions | 43*37*28mm |
| Weight | Approximately 20 kg |
Standard:
IEC 60755 “General safety requirements for residual current operated protective devices”
IEC 61009-1 “Residual curent operated circuit-breakers with integral ovecurrent protection for household and similar uses (RCBOs)”
IEC 60947-1 “Low-voltage switchgear and controlgear”
IEC 60898-1 “Electrical accessories – Circuit-breakers for overcurrent protection for household and similar installations”
IEC 60755: 2017 Clause 8.5
IEC 60755: 2017 Clause 9.4
