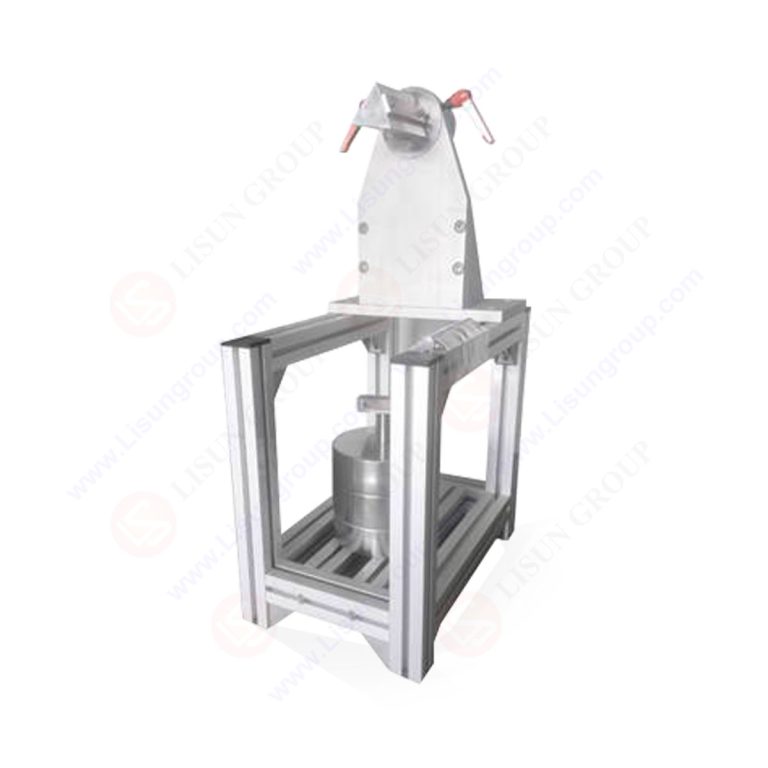

Reel Test Device

Product No: LS-B79

  • Specifications

  • IEC 62368-1:2023 Reel Test Device is designed in accordance with the requirements of IEC 61347 (Annex N), IEC 60065/GB 8898 (Section 8.22 and Figure 6), IEC 62368 (Section 5.4.4.6.5 and Figures 26, 27, and 28), and IEC 60950/GB 4943.1 (Section 4.2.6); it is used to verify the dielectric strength of thin-layer materials under a specified pressure.

    Standards:

    Standards No. Standards Name.
    IEC 61347-1:2017 Controlgear for electric light sources – Part 1: General and safety requirements
    IEC 61558-1:2017 Safety of transformers, reactors, power supply units and combinations thereof – Part 1: General requirements and tests
    IEC 62368-1:2018 Audio/video, information and communication technology equipment – Part 1: Safety requirements
    GB/T 19510.1-2023 光源控制装置 第 1 部分：一般要求和安全要求
    GB/T 19212.1-2016 变压器、电抗器、电源装置及其组合的安全 第 1 部分：通用要求和试验
    GB 4943.1-2022 音视频、信息技术和通信技术设备 第 1 部分：安全要求

    Specifications:

    Item Name Specifications
    1 Overall structure Aluminum alloy and steel composite structure
    2 Weight configuration A 50 N primary weight; paired to form 100 N and 150 N weights; two 1 N weights

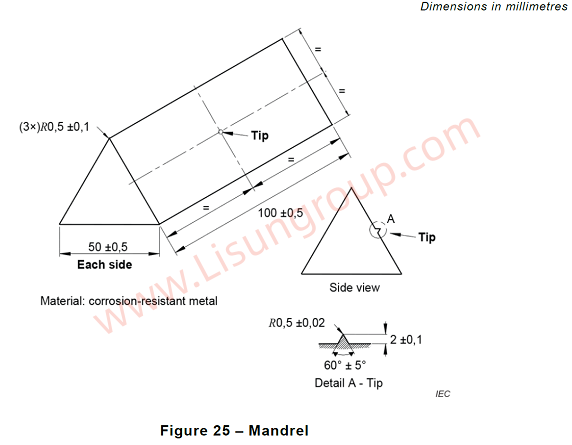

    IEC 62368-1:2023 Figure 25-Mandrel

    IEC 62368-1:2023 Figure 25-Mandrel

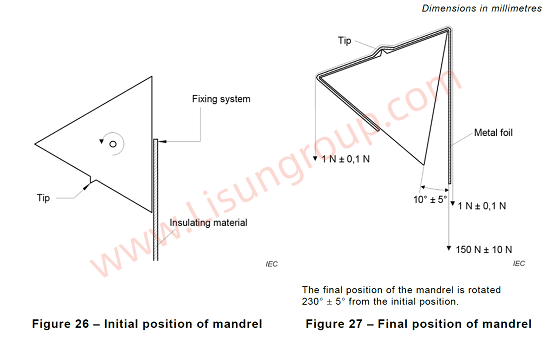

    IEC 62368-1:2023 Figure 26 and Figure 27

    IEC 62368-1:2023 Figure 26 and Figure 27

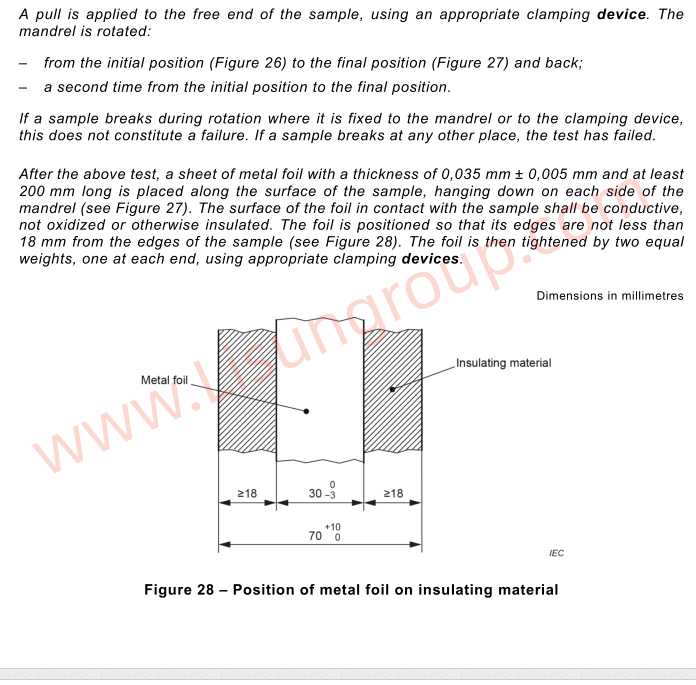

    IEC 62368-1:2023 Figure 28

    IEC 62368-1:2023 Figure 28
