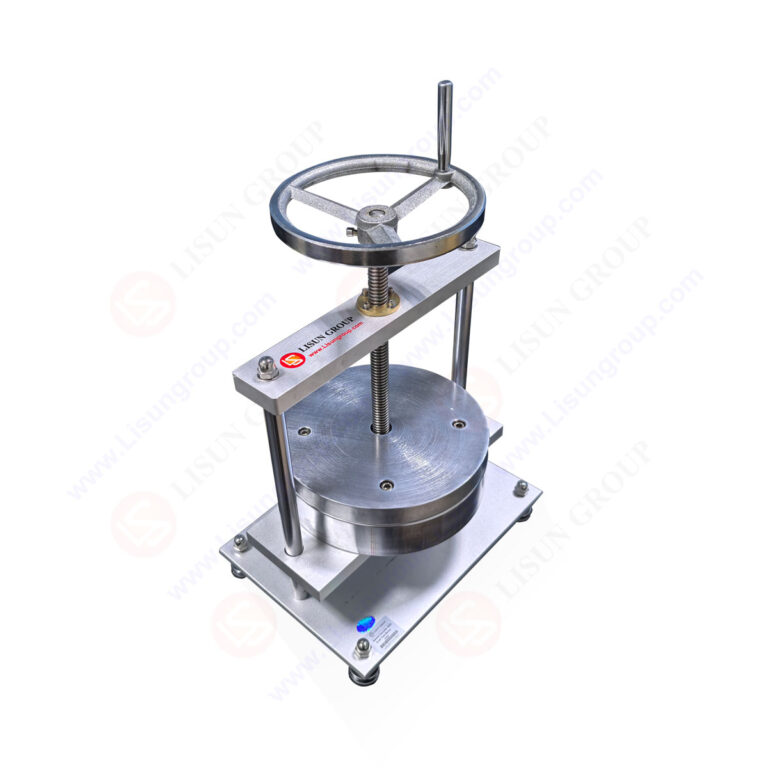

IEC 62368-1:2023 Clause 4.8.4.6 Remote Controller 330N Crush Test Device

The LS-B24 Remote Control 330N Compression Test Apparatus is specifically designed to test the compression resistance of handheld remote control devices, ensuring structural stability and safe operation even under external pressure. The apparatus provides a stable base for the remote control device using a rigid support surface. A specific-sized planar test fixture is used to apply a prescribed compressive force to the exposed top and back surfaces of the device and maintain this force for a specified duration. During testing, the remote control device can be placed in the most adverse condition to simulate real-world compression scenarios. By examining the structural integrity and functional effectiveness of the remote control device under pressure, it provides reliable evidence for product quality verification, helping to ensure the durability and safety of the remote control device in daily use.

Standards:

This device uses a flat rigid surface with a size of approximately 100*250mm to apply a crushing force of 330N±5N to the exposed top and back surfaces of the remote control in a stable state for a duration of 10S.

Standard:
IEC  62368-1:2023 “Audio, video, information technology and communication technology equipment Part 1: Safety requirements” clause 4.8.4.6

Specification:
• Weight: 330N±5N
• Workstation: single workstation
• Operation mode: Manual
• Rigid supporting surface: greater than 150mm×300mm
• Force application plane: 100mm×250mm

Clause 4.8.4.6 of IEC  62368-1:2023

IEC 62368-1:2023 Clause 4.8.4.6 Remote Controller 330N Crush Test Device - Introduction Video
